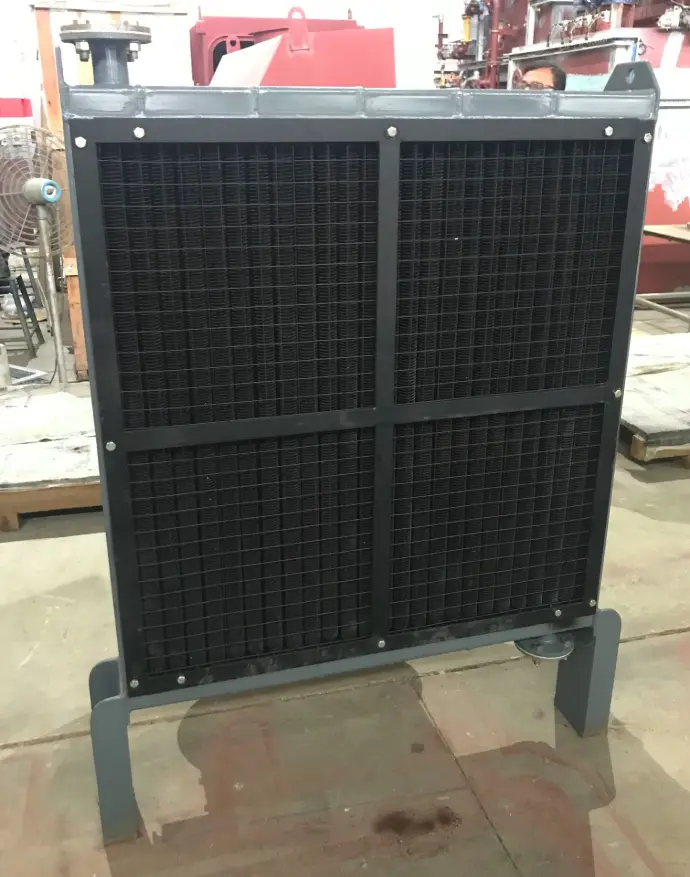

Oil Cooler
Hydraulic Oil Cooler
Oil Cooler for Hydraulic System like hydraulic system like hydraulic power pack, hydraulic press, road making machines, transit mixer, hydraulic sensor paver, tandem vibratory roller, tractor loader, concrete mixer, bore well, etc.
Prevents Overheating
Maintains optimal temperature, ensuring smooth operation and preventing damage to hydraulic components
Reduces Oil Degradation
Prevents oxidation and sludge formation, extending the life of hydraulic oil.
Optimized Fuel Efficiency
Reduces power consumption in diesel and electric-powered hydraulic machines by maintaining efficient fluid viscosity.
Whenever you need oil coolers, please provide the following details:
In which condition hydraulic system is working
(A) On stationary on road equipment
(B) In factory premises etc.
Surrounding temperature of air Of Hydraulic system
High temperature of oil during working and required temperature after connecting oil coolerH
Available Space/Size of oil cooler
Hydraulic Pump capacity
Which Liquid will pass through cooler
Connection of Oil Cooler in size and place on cooler
Electric load in HP connected to hydraulic system or engine HP.
If the temperature of the hydraulic oil becomes too high, many different problems can arise. In order to prevent these problems, when the temperature exceeds a set point, the fluid is cooled by the oil cooler.
Examples of Problems Caused by High Temperature
1
Internal leakage in hydraulic devices (especially pumps and motors) increases, and volume efficiency is diminished.
Internal leakage in hydraulic devices (especially pumps and motors) increases, and volume efficiency is diminished.
In case of operation in a hot climate or continuous operation for a long time, the oil cooler prevents temperature increase and mitigating power loss. An air-cooled oil cooler is used in the hydraulic system. Generally, the maximum permissible temperature for hydraulic oil is 80 °C. When equipment is used in tropical areas, appropriate hydraulic oil must be chosen. If the temperature of the hydraulic oil gets too high, the packing can also be adversely affected.
2
Sealing materials used in the packing and oil seals can change their properties.
Sealing materials used in the packing and oil seals can change their properties.
All thermal hydraulic oil coolers are suitable for fitment on the return line of a hydraulic oil system. Hence the normal design Pressure of these coolers is 10 kg/cm2G and is tested for a hydrostatic pressure of 15 kg/cm2G. However on specific request these coolers can be designed for high-pressure circuit as high as 50-75 kg/cm2G.
3
Sealing materials used in the packing and oil seals can change their properties.
